Store Misaligned Access Unit StoreMisalignBuffer

Function Description

The StoreMisalignBuffer stores one misaligned Store instruction that crosses a 16-Byte boundary. The execution logic is a 7-state finite state machine. When an instruction is detected as misaligned and crossing a 16-Byte boundary in the StoreUnit, it requests to enter the StoreMisalignBuffer. The StoreMisalignBuffer latches this Store and splits it into two separate Store memory accesses (flows), which are then re-entered into the StoreUnit.

The StoreMisalignBuffer collects the Store memory accesses initiated by itself. After both Store memory accesses have completed execution, if the misaligned access does not cross a page boundary, the data is written back. Scalar misaligned write-back to the backend should occur when StoreUnit 1 has scalar write-back disabled. If this condition is not met, the StoreMisalignBuffer write-back to the backend is blocked. Vector misaligned write-back to the VSMergeBuffer should occur when StoreUnit 1 has vector scalar write-back disabled. If this condition is not met, the StoreMisalignBuffer write-back to the VSMergeBuffer is blocked.

For Stores that cross a 4K page boundary, we require that execution can only proceed when the instruction reaches the head of the Rob queue. If an older Store enters the StoreMisalignBuffer during this period, it will evict the current page-crossing 4K Store and set the needFlushPipe flag to true. When a Store finally writes back, we generate a redirect.

For vector operations, if a Store flow for a vector is evicted, the VSMergeBuffer is notified to mark the corresponding entry for that flow as needRsReplay, causing the uop to be resent.

Feature 1: Supports splitting misaligned Stores that cross a 16-Byte boundary for memory access

Changes are made based on the completed flow. The state machine re-enters the s_req state after the first flow writes back, sending the second flow. If the first flow carries an exception and writes back to the StoreMisalignBuffer, it directly writes back to the backend with the exception information, without needing to execute the second flow. Either flow may cause a replay for any reason upon write-back. The StoreMisalignBuffer chooses to resend that flow to the StoreUnit, regardless of the reason for the replay.

sb instructions can never be misaligned.

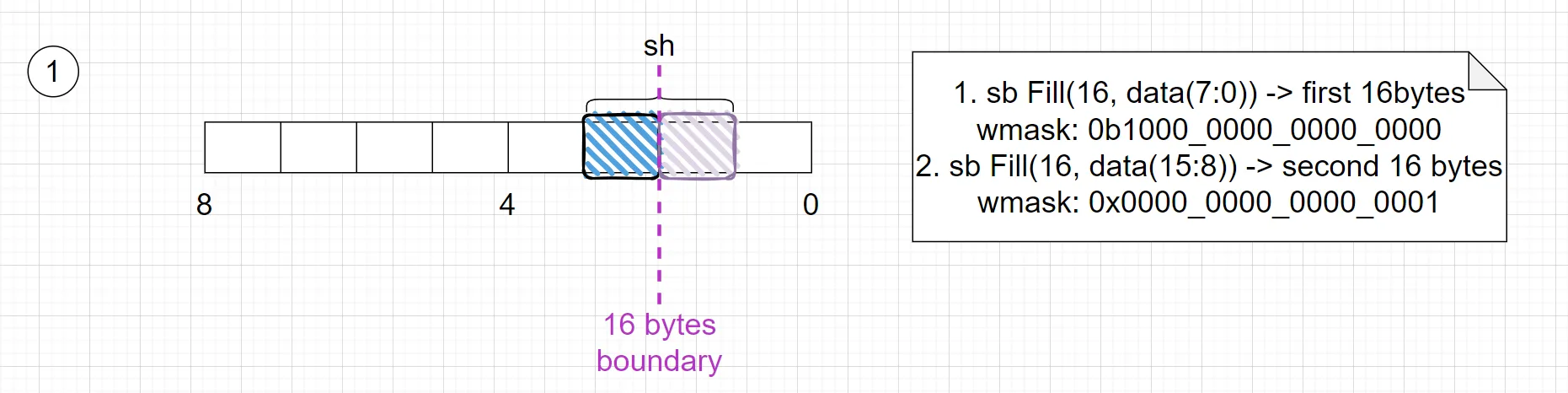

sh is split into two corresponding sb operations:

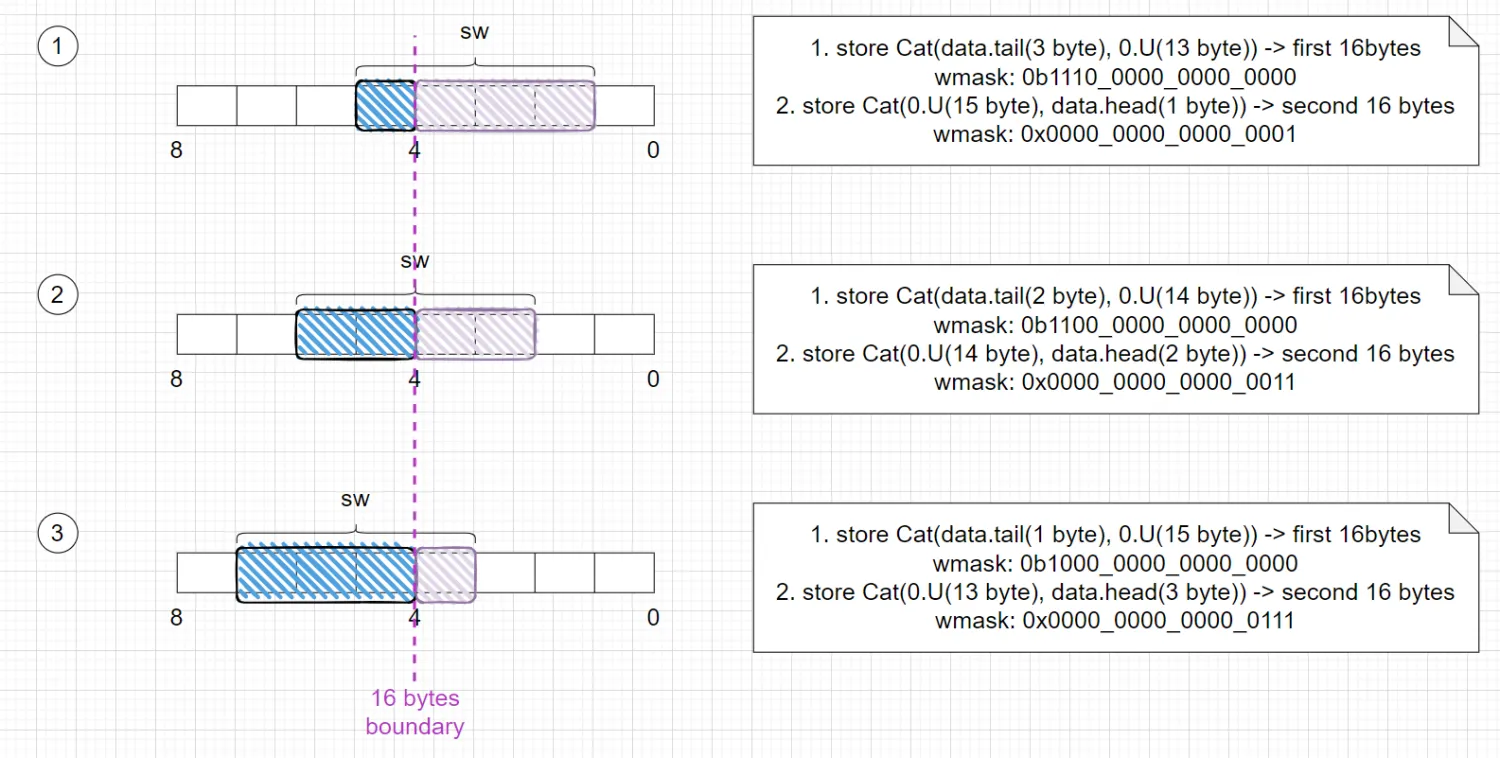

sw is split differently depending on the address:

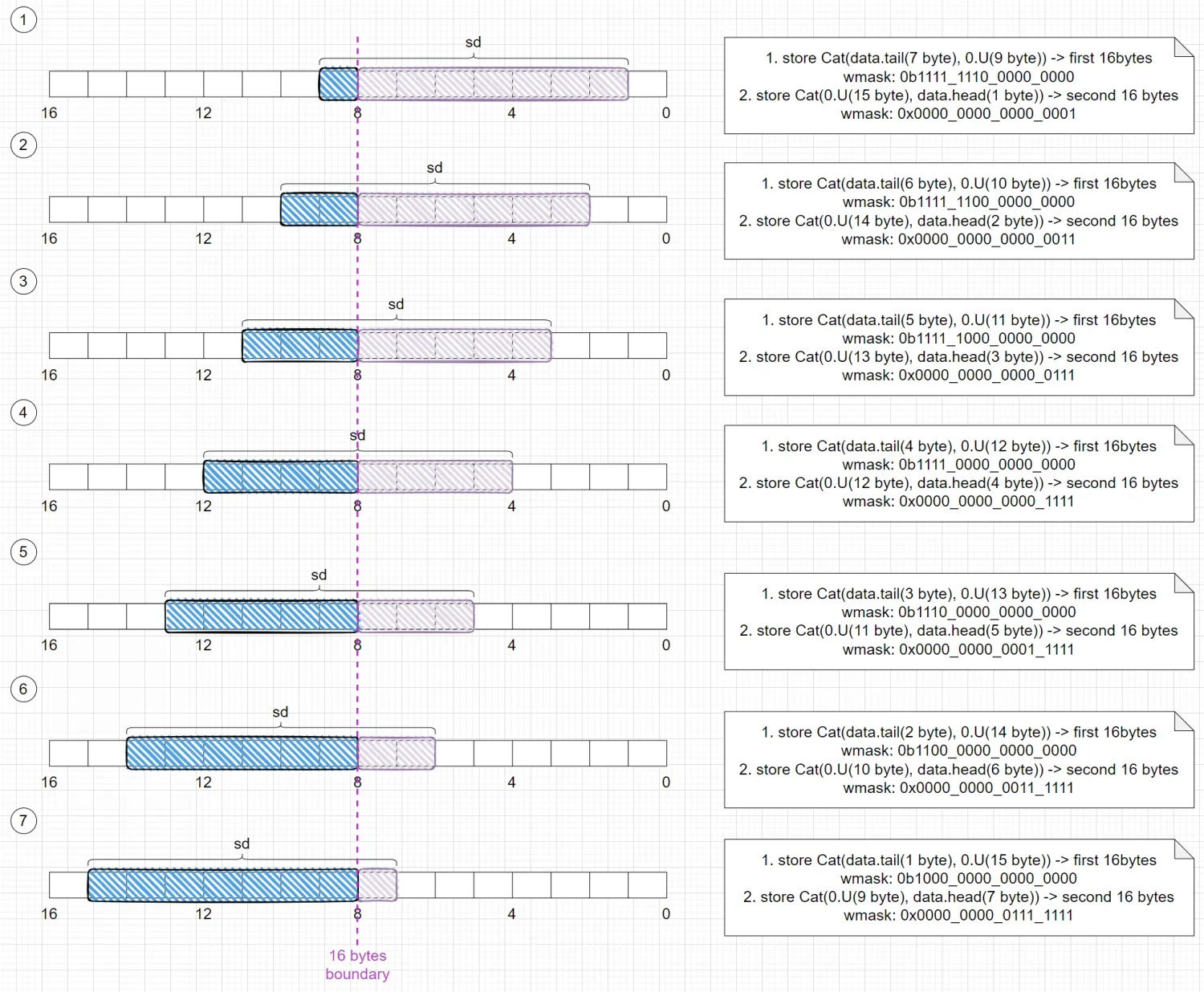

sd is split differently depending on the address:

Feature 2: Supports Vector Misaligned Access

Vector misaligned flows are handled similarly to scalar misaligned flows. The difference is that vector write-back goes to the VSMergeBuffer, while scalar write-back goes directly to the backend.

Feature 3: Does not support misaligned Stores in non-Memory space

Misaligned Stores in non-Memory space are not supported. When a Store in non-Memory space becomes misaligned, a StoreAddrMisalign exception is generated.

Feature 4: Supports Page-Crossing Stores

Because Stores need to write to the Sbuffer, a page-crossing scenario results in two physical addresses. The physical address for the lower page can be stored in the StoreQueue, while the physical address for the higher page needs a separate place to be stored. We choose to store it in the StoreMisalignBuffer. Thus, for page-crossing Stores, we must wait for this instruction to commit from the Store Queue to the Sbuffer before clearing this entry in the StoreMisalignBuffer. Therefore, we provide the StoreQueue with the latched metadata and address from the current StoreMisalignBuffer, for the Store Queue's write-back use. Specifically, we will use related signals from the rob and StoreQueue to determine if the current Store metadata needs to be latched and held.

Overall Block Diagram

State Descriptions

State	Description
s_idle	Waits for a misaligned Store uop to enter
s_split	Splits the misaligned Store
s_req	Dispatches the split misaligned Store operations to the StoreUnit
s_resp	Receives write-back response from the StoreUnit for the split flows
s_wb	Writes back to the backend or VSMergeBuffer
s_block	Blocks this instruction from dequeuing until the Store Queue writes the entry to the Sbuffer

Key Ports

Port Name	Direction	Description
redirect	In	Redirect port
req	In	Receives enqueue request from StoreUnit
rob	In	Receives relevant metadata information from Rob
splitStoreReq	Out	Sends the split flow's memory access request to the StoreUnit
splitStoreResp	In	Receives the split flow's memory access response from the StoreUnit write-back
writeBack	Out	Scalar misaligned write-back to the backend
vecWriteBack	Out	Vector misaligned write-back to the VSMergeBuffer
StoreOutValid	In	Indicates a Store instruction in the Store Unit is about to write back to the backend
StoreVecOutValid	In	Indicates a Vector Store instruction in the Store Unit is about to write back to the VSMergeBuffer
overwriteExpBuf	Out	Hanging (unused)
sqControl	In/Out	Interface for interaction with the Store Queue
toVecStoreMergeBuffer	Out	Sends flush-related information to the VSMergeBuffer

Interface Timing

Interface timing is relatively simple, only providing textual descriptions.

Port Name	Description
redirect	Has Valid signal. Data is valid when Valid is high.
req	Has Valid, Ready signals. Data is valid when Valid && Ready is high.
rob	Does not have Valid signal, data is always considered valid, responds when the corresponding signal is generated.
splitStoreReq	Has Valid, Ready signals. Data is valid when Valid && Ready is high.
splitStoreResp	Has Valid signal. Data is valid when Valid is high.
writeBack	Has Valid, Ready signals. Data is valid when Valid && Ready is high.
vecWriteBack	Has Valid, Ready signals. Data is valid when Valid && Ready is high.
StoreOutValid	Does not have Valid signal, data is always considered valid, responds when the corresponding signal is generated.
StoreVecOutValid	Does not have Valid signal, data is always considered valid, responds when the corresponding signal is generated.
overwriteExpBuf	Hanging (unused).
sqControl	Does not have Valid signal, data is always considered valid, responds when the corresponding signal is generated.
toVecStoreMergeBuffer	Does not have Valid signal, data is always considered valid, responds when the corresponding signal is generated.
